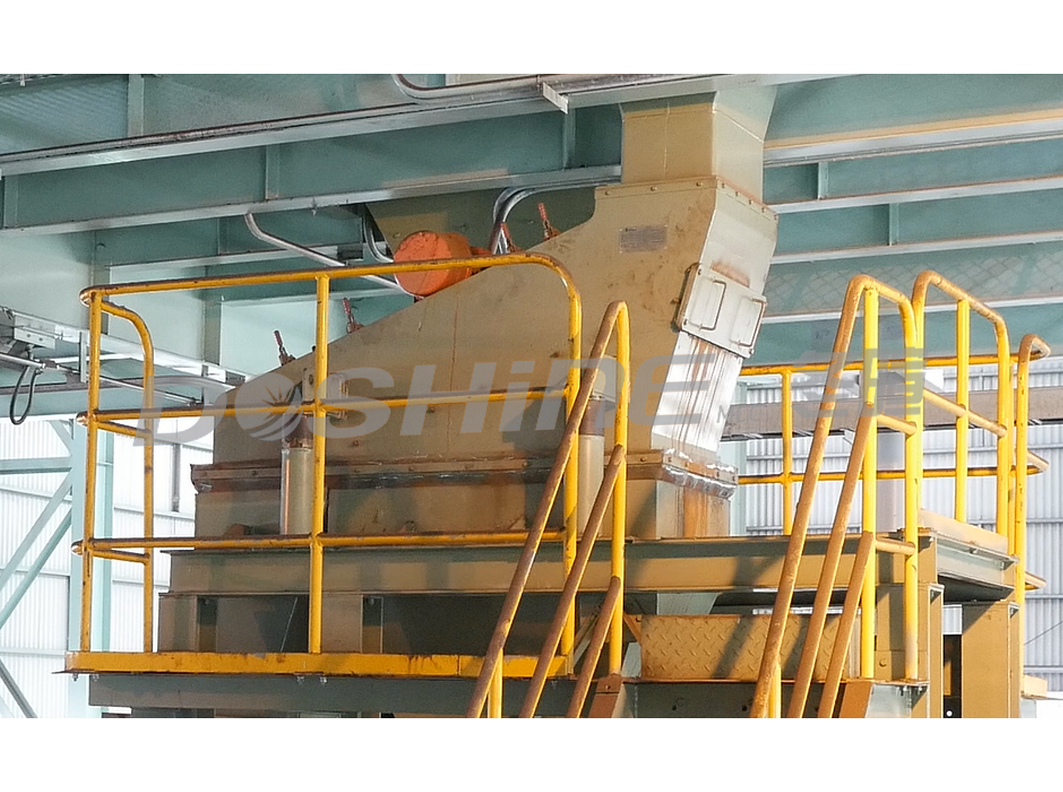

DTS type sieving screen is used to separate the material components of different materials in the sample preparation system. A vibration motor is used at the center of gravity of the equipment. The vibration motor rotates at the same cycle. The centrifugal screen force is used to periodically vibrate the inclined screen surface to roll or slide the material from the top of the screen. The component with small friction angle and poor rolling property falls off the sieve hole when sliding across the sieve surface, thereby accurately separating the different components of the material.
Application areas: ports, steel, etc.
Adaptable material
|
Iron ore, sinter, pellets, etc.
|
Operation mode
|
Single axis inertia circular vibration
|
Screen size
|
20mm、100mm(Round hole)
|
Screen size
|
600×1200mm
|
Sieve angle
|
20°
|
Vibration frequency
|
16Hz
|
amplitude
|
3~6mm(Adjustable)
|
Sieve material
|
SUS304
|
Processing capacity
|
>6t/h
|
Screening efficiency
|
>≥95%
|
Motor Power
|
>0.55kw
|
power supply
|
>380V 50Hz
|
Technical features
The vibration motor is an adjustable eccentric block type vibration motor with adjustable amplitude.
Fully enclosed, no dust flying, minimize sample loss.
There are sieve plate repair holes, screen plate replacement and easy maintenance.
